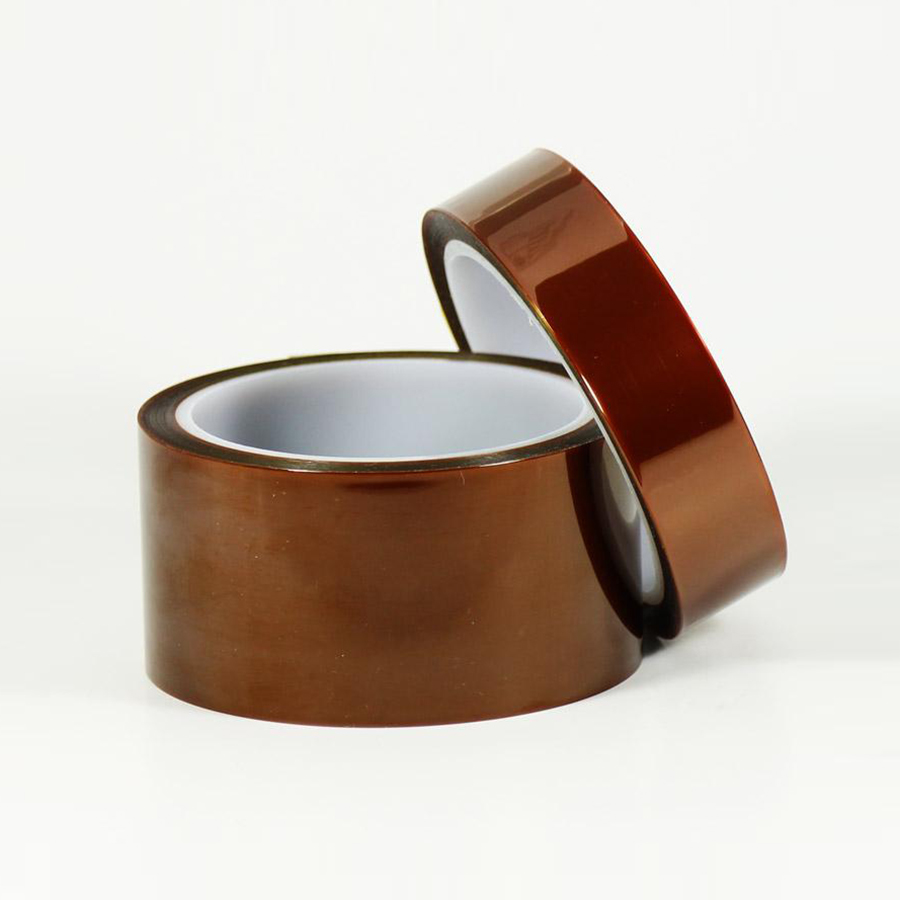

Two rolls of thick amber polyimide Kapton tape stacked for heavy-duty electrical insulation.
Two rolls of amber polyimide Kapton tape for high-temperature electronic masking and insulation.

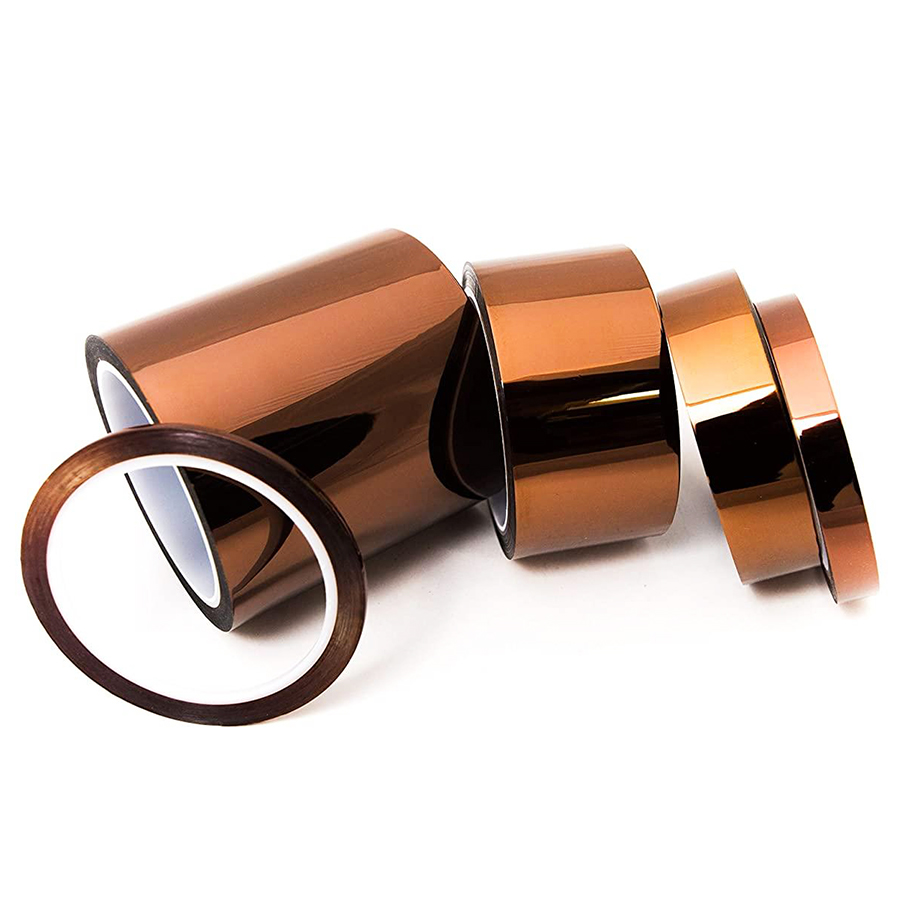

Multi-size polyimide Kapton high-temperature tape rolls for wholesale distribution.

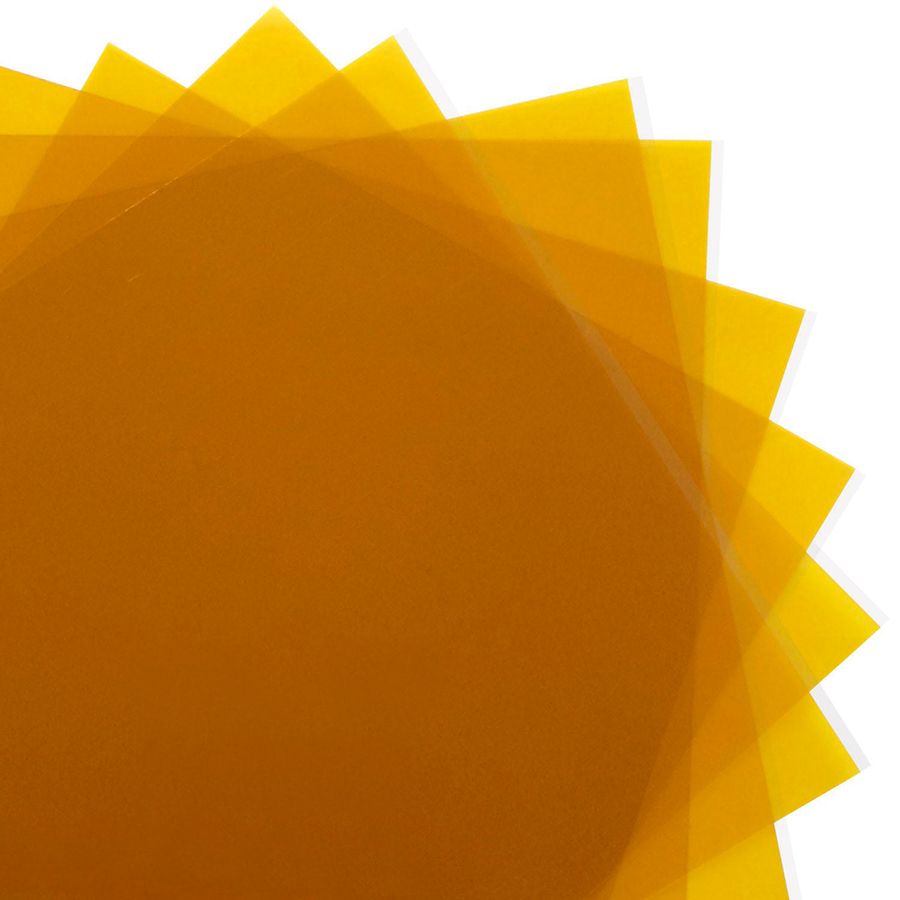

Amber polyimide film sheets stacked in a fan shape to show color transparency and thickness.

High Temperature Tape / PI Kapton High Temp Tape

Product No：kry7001

Single-sided Kapton tape uses polyimide film the base material,One side coated with silicone adhesive.

Thicknesses range from 0.03 mm to 0.15 mm, with different thicknesses available to meet various needs.
Color: Amber
Thickness: From 0.03mm to 0.15mm
Temperature resistance(℃): 3From -73 to 280
Width: 500mm or customized
Length: 33m or customized
Core: 3in or 1.5in
Cutting: Any width
Samples: Free

Get Free Quote
Technical SpecificationsDataTechnical SpecificationsData
ColorGold, Black, Red, Green, TransparentTensile Strength [kg/25mm]10-36
Total Thickness [mm]0.03-0.06Elongation at Break [%]30-70
Total Thickness (μm)30-150Breakdown Voltage [KV]2.5-10.5
Backing Thickness [mm]0.0125-0.1Long-Term Temperature Resistance [°C]260
BackingPIShort-Term Temperature Resistance [°C]280
AdhesiveSilicone/Acrylic FiberTemperature Resistance [°C]-73 to 280℃
180° Peel Strength [Newtons/inch]4-6.5
  • Features of Kapton Polyimide Tape:
  • Excellent electrical insulation properties
  • Outstanding dimensional stability
  • High heat resistance
  • Durable and long-lasting
  • Completely removable
  • High temperature resistance up to 260℃
  • Class H insulation
  • High tensile strength
  • Heat-resistant silicone adhesive polyimide tape
  • High temperature resistance, solvent resistance, stable and reliable
  • Kapton polyimide tape Applications：
  • Used for protection in wave soldering and reflow soldering gold finger.
  • Used for electrical and electronic industry under the working temperature bonding insulation, Metal material at high-temperature paint, sand coating covered surface protection.
  • Used for electrical switches, motors, transformers, relays, cable, coil, capacitor, and lithium batteries in the insulation box bonded H level.
  • Used for circuit board manufacturing industry in various needs high-temperature and moisture protection of electronic components.

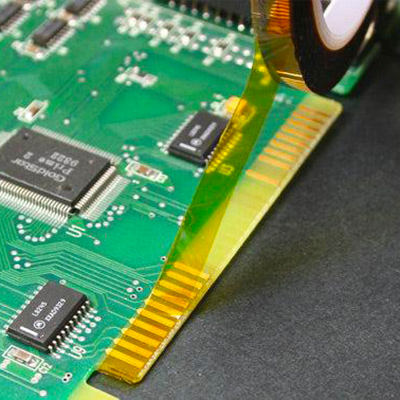

Polyimide Kapton tape applied on PCB gold fingers for high-temperature soldering protection.
PI Tape is used in electronic boards

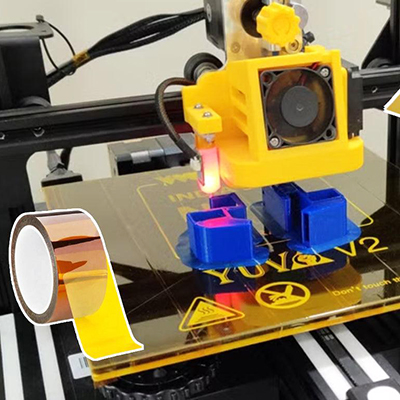

Polyimide Kapton tape applied on a 3D printer heated bed for print adhesion and thermal protection.
PI Tape is used in 3D printing

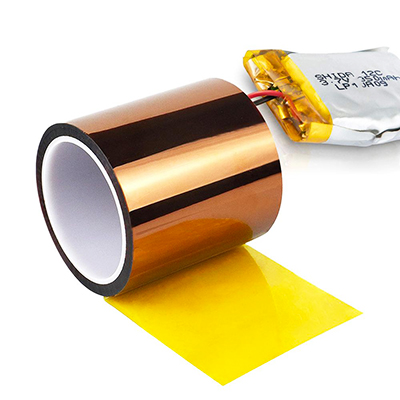

Polyimide Kapton tape roll applied for lithium-ion battery cell insulation wrapping.
PI Tape is used in batteries
  • PI Kapton High Temp Tape is an industrial tape made of polyimide film (PI film) coated with high-temperature resistant silicone.PI Kapton High Temp Tape is a heat-resistant polyimide adhesive tape designed for electronics insulation, PCB masking, lithium battery protection, and high-temperature industrial applications.
  • Large roll coating slitting or cutting into smaller rolls
  • Width cutting according to customer requirements
  • Laminating with other materials
  • Free samples
