High Temperature Tape / PET high temperature tape
Product No：kry7004

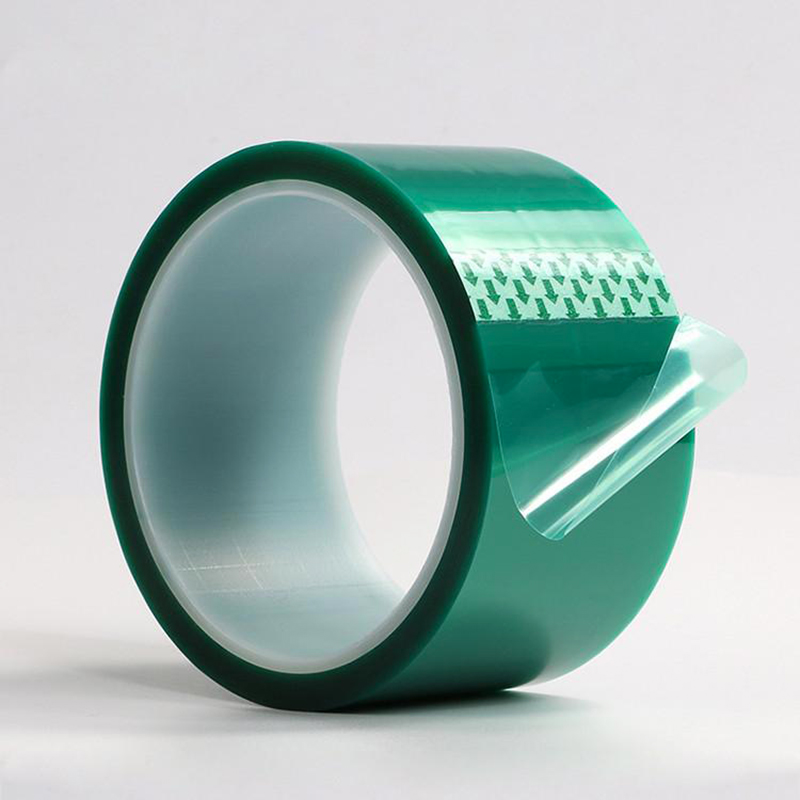

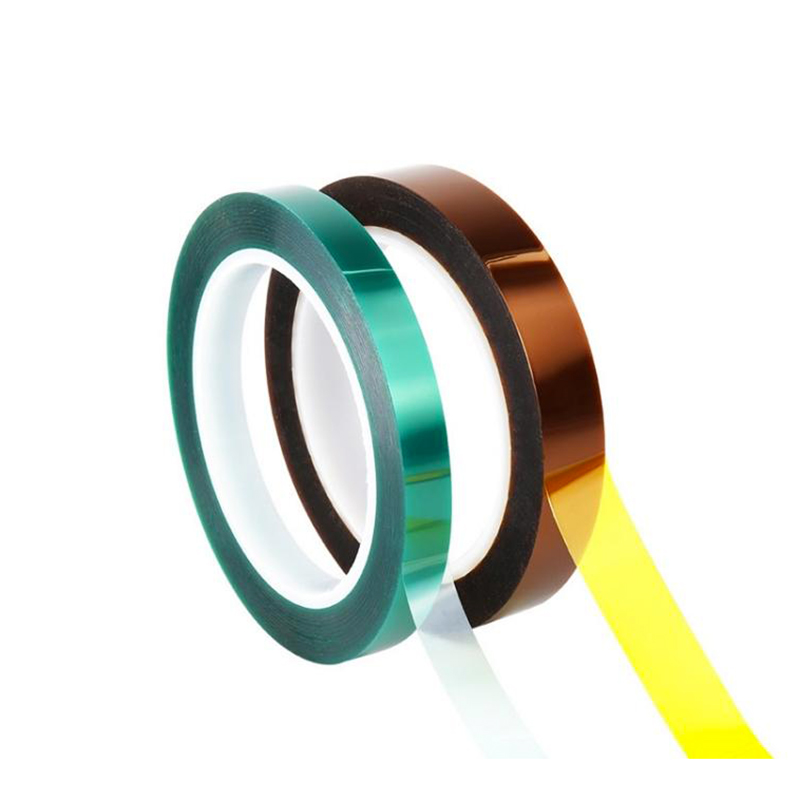

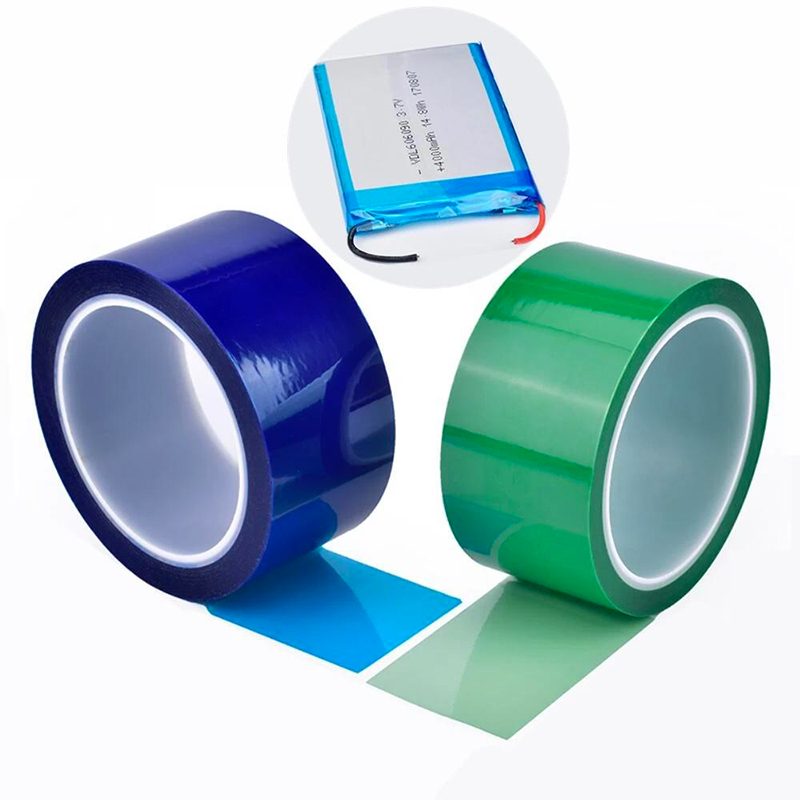

PET high temperature tape offers strong adhesion, heat resistance, easy splicing, and residue-free removal.
Colors: Amber, Black, Red, Green, Clear
Thickness: 0.05mm to 0.2mm
Backing: Polyimide
Adhesive: Silicone
Width: 3mm to 500mm
Length: 33m | 36yd
Temperature Range (°C): -73 to 260°C
Core Material: 3 inches or 1.5 inches
Cut to: Any width
Samples: Free samples
| Technical Parameters | parameter | Technical Parameters | parameter |
| Color | Green, Brown, Transparent, Light Yellow, Dark Yellow, White, Black, Red, Blue (Customizable) | 180° Peel Strength [N/inch] | 6/8/10 |
| Total Thickness [mm] | 0.06-0.1 | Tensile Strength[N/inch] | 135/150/200 |
| Total Thickness (μm) | 60-100 | Elongation at Break [%] | 70 |
| Backing Thickness [mm] | 0.025/0.038/0.03/0.1 | Long-Term Temperature Resistance [°C] | 180 |
| Backing | PET | Short-Term Temperature Resistance [°C] | 200 |
| Adhesive | Silicone | Temperature resistance[°C] | -50 to 200℃ |
- PET High Temperature Tape Characteristics
- Excellent high temperature resistance, typically withstanding continuous temperatures up to 180°C.
- Easy removal, leaving no residue or surface contamination on metal, glass, or electronic substrates.
- Superior dimensional stability ensures the tape will not curl, deform, or peel during high-temperature operations.
- Excellent electrical insulation properties, suitable for applications requiring electrical insulation in high-temperature environments.
- High mechanical strength and tear resistance: The polyester backing ensures excellent durability during handling, automated processing, and die-cutting operations.
- Wide substrate compatibility: Adheses firmly to metal, glass, ceramic, and smooth plastic surfaces commonly used in electronics and industrial manufacturing.
- SMT reflow soldering process.
- PCB and component masking.
- Powder coating and electroplating masking.
- Solar module and cell manufacturing.
- High-temperature industrial processing.
- Large roll coating slitting or cutting into smaller rolls
- Cutting width according to customer requirements
- Die-cutting according to customer drawings
- Laminating with other materials
- Free samples
