High Temperature Tape / Double-sided Kapton Tape
Product No：kry7003

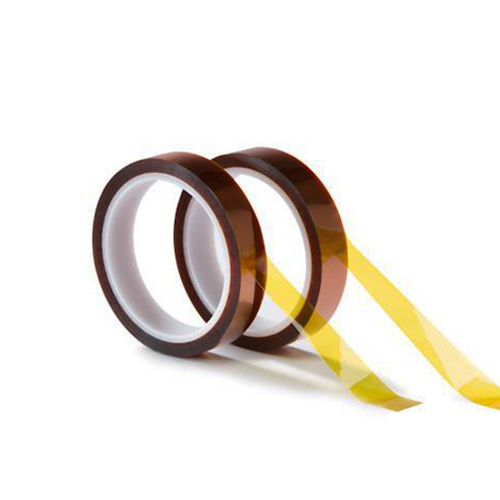

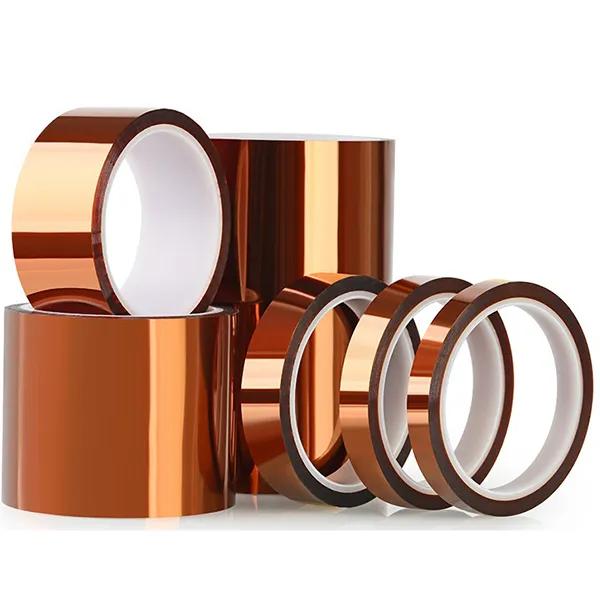

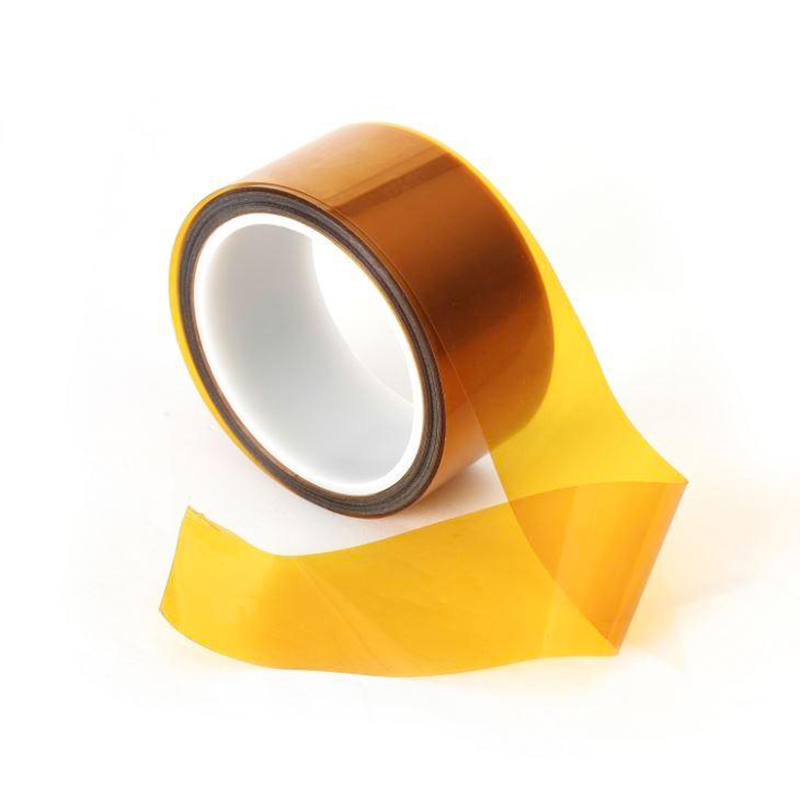

Krytape Double-sided Kapton Tape is made of polyimide film coated with silicone adhesive on both sides.
Color: Green, Brown, Transparent, Light Yellow, Dark Yellow, White, Black, Red, Blue
Thickness: From 0.06mm to 0.1mm
Backing: PET
Adhesive: Silicone
Width: 3mm to 500mm
Length: 33m | 36yd
Core: 3in or 1.5in
Cutting: Any width
Temperature resistance(℃): From -73 to 200
Samples: Free
| Technical Parameters | parameter | Technical Parameters | parameter |
| Color | Amber, Black, Red, Green, Transparent | Tensile Strength [kg/25mm] | 10-30 |
| Total Thickness [mm] | 0.05-0.2 | Elongation at Break [%] | 30-60 |
| Total Thickness (μm) | 50-200 | Breakdown Voltage [KV] | 2.5-9 |
| Backing Thickness [mm] | 0.012-0.075 | Long-Term Temperature Resistance [°C] | 260 |
| Backing | PI | Short-Term Temperature Resistance [°C] | 280 |
| Adhesive | Silicone | Temperature resistance[°C] | -73 to 260℃ |
| 180° Peel Strength [N/inch] | A≥6.5-10，B≥6-10 |
- PCB gold finger masking & protection.
- SMT component fixing before soldering.
- FPC & Flexible Electronics stiffener bonding.
- Semiconductor & Microelectronics bonding insulation.
- Chip packaging insulation.
- Motor, Transformer & Electrical Insulation.
- EV battery module assembly.
- Automotive Electronics ECU module insulation.
- Sensor and control unit bonding.
- Kapton polyimide tape Applications：
- Used for protection in wave soldering and reflow soldering gold finger.
- Used for electrical and electronic industry under the working temperature bonding insulation, Metal material at high-temperature paint, sand coating covered surface protection.
- Used for electrical switches, motors, transformers, relays, cable, coil, capacitor, and lithium batteries in the insulation box bonded H level.
- Used for circuit board manufacturing industry in various needs high-temperature and moisture protection of electronic components.
- Large roll coating slitting or cutting into smaller rolls
- Cutting width according to customer requirements
- Die-cutting according to customer drawings
- Laminating with other materials
- Free samples
