Key Features & Advantages
High Shear & Peel Adhesion: Manufactured from premium pressure sensitive adhesive (PSA) materials such as acrylic, rubber or silicone that provide immediate stickiness and a powerful adhesion for extended period of time.
Multi-Substrate Versatility: High bond strength is obtained on hard-to-bond substrates such as plastic (PP/PE/ABS), metal, glass, wood and textured or porous substrates.
Extreme Weather & Temperature Resistance: Constructed to consistently deliver under hot and cold temperatures (resistance Up to 150°C – 200°C for short time periods), UV radiation, water and chemical solvents.
Vibration Damping & Sealing: Foam double-sided tape cushions vibrations, absorbs shock impacts, compensates for differential thermal expansion, and conforms to irregular surfaces and in doing so, it can replace the use of mechanical fasteners (screws, rivets, welds)
Double Sided Tape Manufacturing & Supply Chain Process
From high-precision slitting and sample inspection to export carton packing and container loading — explore our streamlined B2B production workflow.

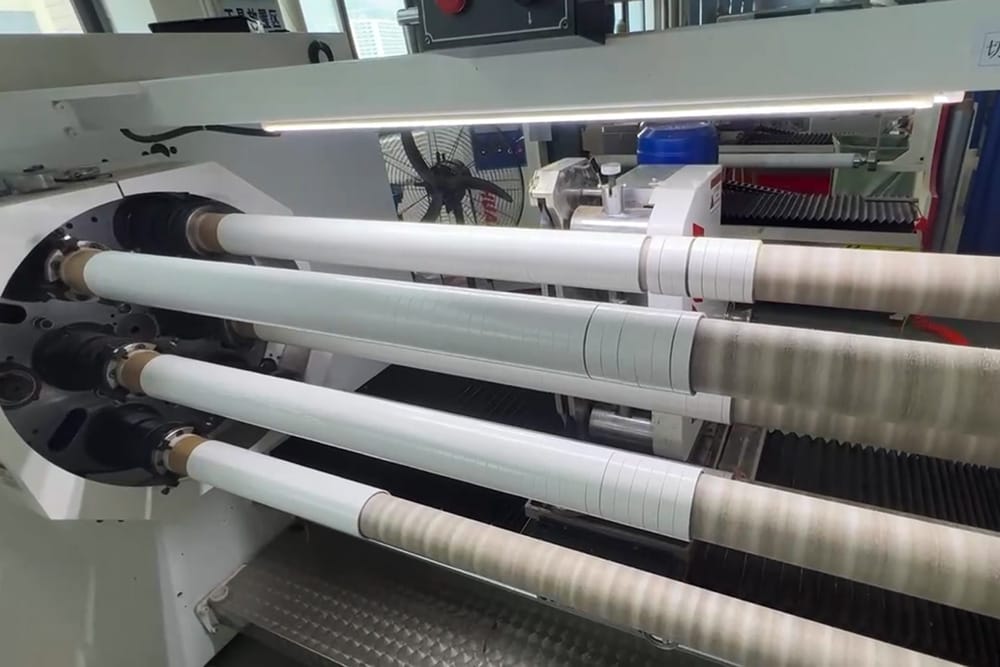

High-Precision Slitting & Cutting
Master jumbo rolls of double sided tape are mounted on automated CNC slitting machines. Guided by precise tension controls and ultra-sharp circular blades, jumbo rolls are accurately slit into customized widths (from 2mm upwards) or die-cut into custom adhesive shapes with minimal width tolerances.

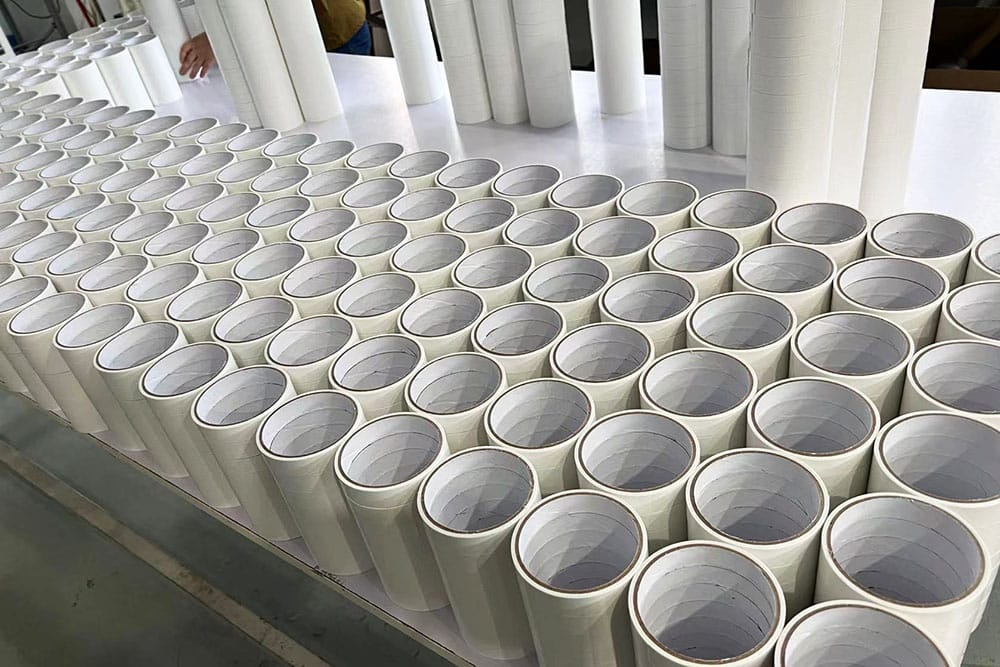

Finished Rolls & Sample Inspection
Every production batch produces finished rolls and pre-shipment samples that undergo rigorous laboratory testing. We inspect 180° peel adhesion, static shear holding power, adhesive thickness, and initial tack to ensure every finished tape roll meets strict ISO quality standards before bulk release.

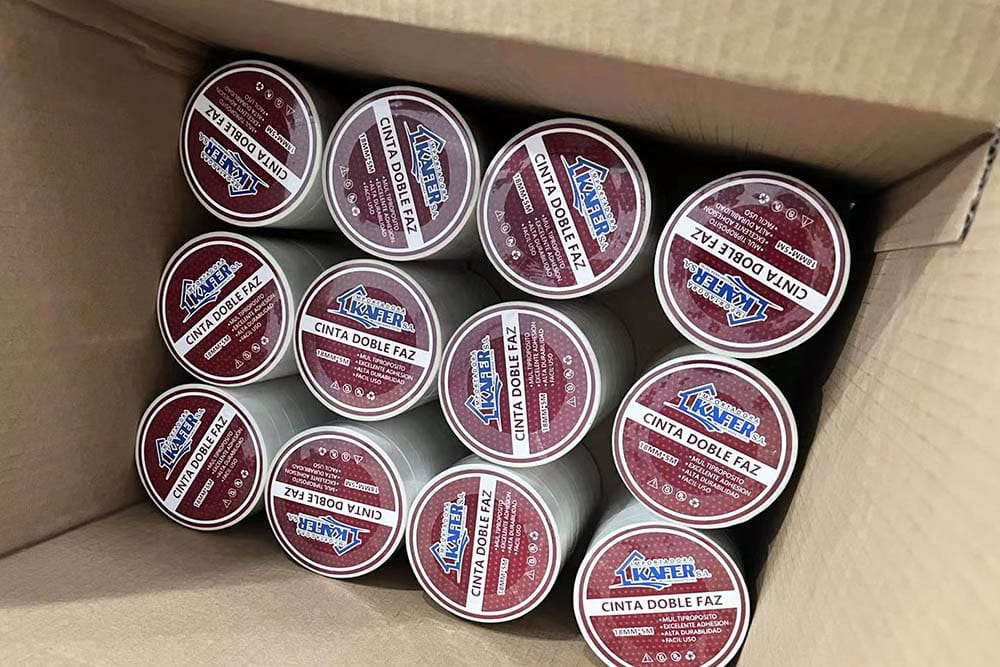

OEM Shrink Wrap & Carton Packing
Reviewed double sided tape rolls are packed in single or tower thermal shrink packaging with custom brand logos and barcode labels. They are organized in heavy-duty corrugated export boxes that can withstand moisture, dust and pressure from the distance transportation.

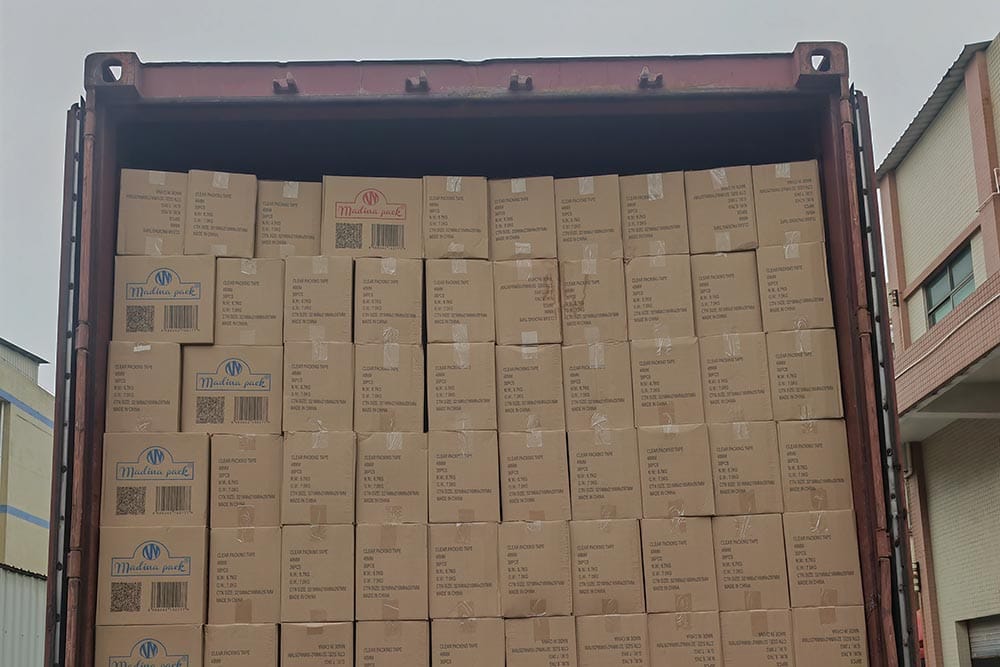

Container Loading & Global Shipping
Cartons are palletized, stretch-wrapped, and systematically loaded into sea containers. Optimized spatial stacking, secure cargo bracing, and professional moisture protection ensure safe, zero-damage delivery to our international distributors and industrial buyers worldwide.
Technical Specifications
Comprehensive performance metrics for our industrial double sided adhesive tapes. All parameters are tested under standard laboratory conditions.
| Technical Property | Typical Value / Range | Test Standard |
|---|---|---|
| Carrier / Substrate Type | PET Film / Tissue / PE Foam / Acrylic Foam / Transfer (Linered) | — |
| Total Thickness Range | 0.05 mm – 3.0 mm (±0.005 mm tolerance) | ASTM D3652 |
| 180° Peel Adhesion (Steel) | ≥ 15 – 35 N/25mm (Depending on adhesive chemistry) | ASTM D3330 / PSTC-101 |
| Initial Tack (Rolling Ball) | ≤ 10 # Ball | GB/T 4852 / PSTC-6 |
| Holding Power (Static Shear) | ≥ 24 Hours (1 kg / 25mm × 25mm @ 23°C) | ASTM D3654 / PSTC-107 |
| Continuous Operating Temp. | -20°C to +80°C | — |
| Short-Term Peak Temp. | Up to +150°C ~ +200°C | — |
| Release Liner Options | Yellow/White Glassine Paper, Red PET Film, PE Coated Paper | — |
* Note: The technical data provided above represents typical standard values and should be used as a guide only. Customized carrier thickness, adhesive formulations, and slit widths can be tailored upon customer request.
Frequently Asked Questions (FAQ)
Everything you need to know about our industrial double sided adhesive tapes and converting services.
1. Can I get free samples for quality testing? +
2. What is the difference between tissue, PET, and transfer double-sided tapes? +
3. How can I get a quotation quickly? +
- Tape type (PET, Tissue, PE/Acrylic Foam) and dimensions (Width x Length x Thickness)
- Estimated Order Quantity
- Customization requirements (Die-cut shapes, Logo printing, or Private-label packaging)
4. How should surfaces be prepared prior to tape application? +
5. Do you support custom slitting width and die-cut converting? +
